Materials - fused basalt and eucor

In Eutit s.r.o.

we produce two basic materials, which covers the company production.

First and more produced one is melted basalt. This is produced from raw material, which is world-unique by its material composition. From melted basalt, which features excellent properties, particularly abrasion and chemical resistance, the company produces huge amount of products of wide applicability.

The second material produced by the company is material with trade name eucor. This material features excellent properties, too, and additionally it is resistant to high temperatures, and it is used exclusively in industrial operations, e.g. as abrasion-resistant insert protecting the piping.

Čedič - Basalt

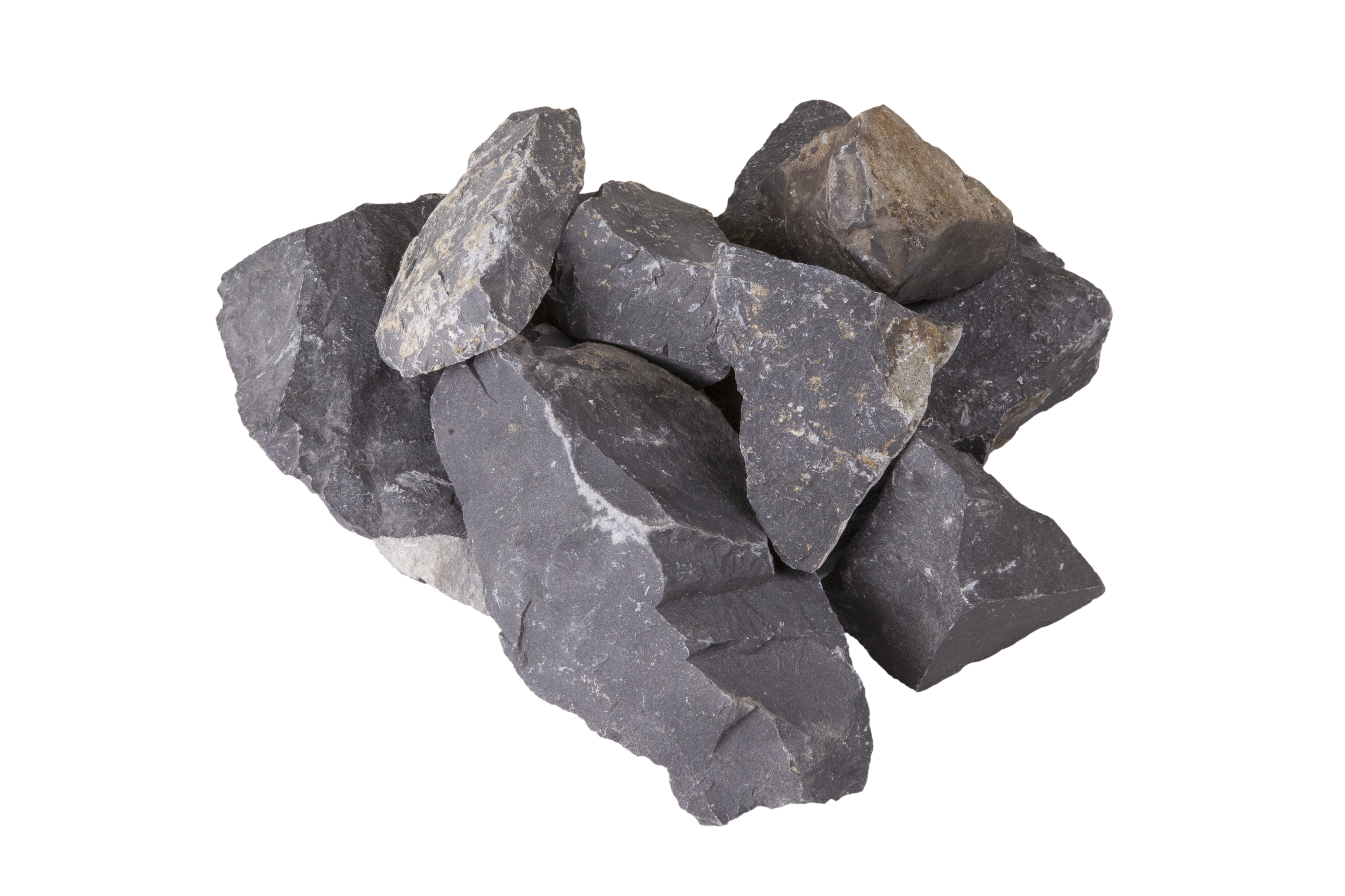

Basalt

Basalt is natural material-stone, which belongs to such materials, whose lifetime has exceeded not only centuries, but also millenniums. But its hardness and difficult processability limited its wider expansion in constructional sector. As late as in 20th century the stone features much wider application in industry and civil engineering with development of petrurgy, i.e. processing of non-metallic ores by melting and casting.

Basalt is continuously melted in pit-type furnace heated by natural gas at approx. temperature 1280°C. At 1200°C it is cast (shaped) into metal or sand moulds, and after removing it is stored into continuous cooling tunnel furnaces till cooling after 16-21 hours, where it re-crystallizes and gains its end-use properties.

Use

Melted basalt produced by our company features general applicability and therefore it may be found in various forms practically in all industrial sectors. But you may found it also in interior areas, where its non-traditional appearance and excellent end-use properties are used.

Main Physical Properties of Basalt:


Strength in compression min. 300-450 MPa (ČSN EN 993-5)





Mohs hardness min. 8th grade (ČSN EN 101)





Use up to 400°C





High chemical resistance





Wearability max. decrease 5 cm3/50 cm2 (DIN 52108)





Abbrasion resistance max. decrease 110 mm3 (ČSN EN ISO 10545-6)





Imbition 0 % (ČSN EN ISO 10545-3)





Frost resistance





Thermal shock resistance up to 150°C





Bend strength min. 45 MPa (ČSN EN 993-6)





obj hmotnost.jpg
Volumetric weight 2900-3000 kg.m-3 (ČSN EN 993-1)






Products

Our company produces literally thousands of various products from the melted basalt and this amount is ever increasing, either due to our own development or on basis of requirements from our clients.

Main groups of products from melted basalt:
  • Pavements
  • Tubes
  • Bends
  • Reducing pieces, T-pieces, Y-pieces
  • Special shaped casts
  • Split gutters
  • Radial shape pieces
  • Sewerage gutters, tubes, bricks
  • Heading tubes
  • IN LINE tubes
EUCOR

Eucor

EUCOR is material produced by melting of suitable raw materials in electric arc furnace at temperature exceeding 2000°C followed by crystallizing of resulting melt. The melt is cast into sand moulds by common casting method.

Final product is aluminium-zircon-silicate composed from corundum, baddeleyite and vitreous phase. Eucor features excellent properties, particularly hardness, resistance against high temperatures and chemical corrosion.

Use of products from EUCOR

Due to its excellent hardness they are applied under conditions of extreme heavy abrasive load, such as pneumatic transport of silica sand, sinter, mainly in the piping bends. Other examples cover lining of separators, spiral chutes, dragline conveyors, concrete mixers, blenders etc.

Resistance against high temperatures enables use for masonry of glass furnaces above the melt level, special shape pieces of burner walls and burners themselves, shape pieces of regenerative chambers, coke-oven platforms etc. An interesting opportunity is use in fly-ash separators with high entry temperature, where all stated properties, incl. chemical resistance, might be used.

Due to its high strength and abrasive resistance the EUCOR may be successfully applied in certain metallurgic operations for transport of scale and slag. Wire works use with satisfaction eucor conductors - racks.

Main Physical Properties of Eucor:


Strength in compression min. 300 MPa (ČSN EN 993-5)





Mohs hardness min. 9th grade (ČSN EN 101)





Use permanently up to 1000°C, short-time up to 1100°C





High chemical resistance





Abrasive resistance max. decrease 30 mm3 (ČSN EN ISO 10545-6)





Actual porosity 10 % (ČSN EN 993-1)





Thermal shock resistance min. 20 cycles 950/20°C (DIN 51068-1)





Bend strength min. 50 MPa (ČSN EN 993-6)





obj hmotnost.jpg
Volumetric weight 3500 kg.m-3 (ČSN EN 993-1)









Products

EUTIT s.r.o. delivers from eucor material particularly casts for inserts of piping pieces, but also flat tiles, radial tiles, tailored shape pieces for lining of steel jackets acc. to drawing documentation from customers. Eucor is also basic material for production of complex casts for glass processing sector, metallurgical plants, power and heating plants etc.

These enterprises, but also others, order piping elements lined with eucor, too.

Main groups of products from eucor:
  • Tiles
  • Radial shape pieces
  • Tubes
  • Bends
  • Reducing pieces, T-pieces, Y-pieces
  • Special shape casts
