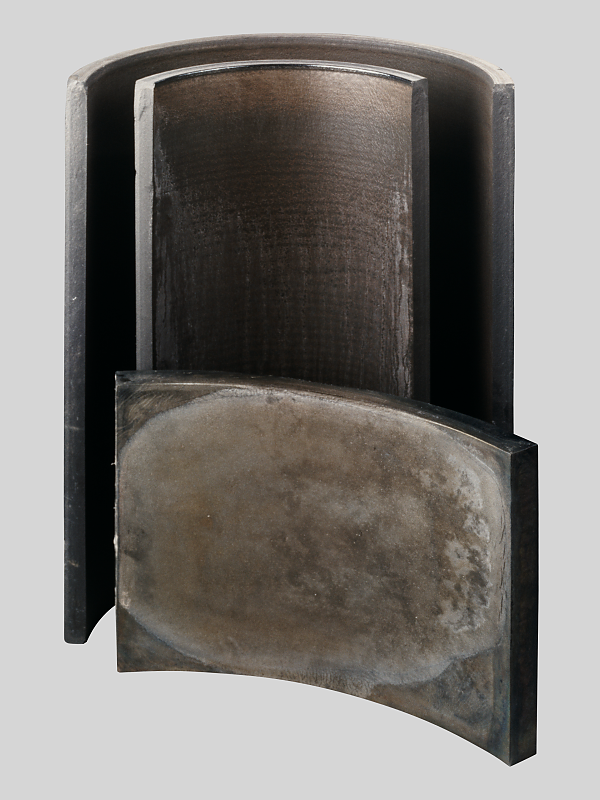

Other selected types of radial shape pieces.
Radial pieces are marked as follows: R150/60/250 (radius on inner-working side of radial piece/angle/length). Thickness 30 mm, length 250mm.If your request the non-specified product size, we are able to manufacture the tailored shape pieces – please contact the manufacturer.
| R - radius | JS – diameter | produced angles |
| 150 | 300 | 60; 90; 120 |
| 200 | 400 | 60; 90; 120 |
| 250 | 500 | 60 |
| 300 | 600 | 30; 45; 60 |
| 350 | 700 | 30; 60 |
| 910 | 1820 | 20 |
| 1020 | 2040 | 18 |
| 1135 | 2270 | 16 |
| 1250 | 2500 | 6,3; 12,73 |
| 1400 | 2800 | 6,3; 11,62; 12,73 |
| 2255 | 4510 | 5,5 |
